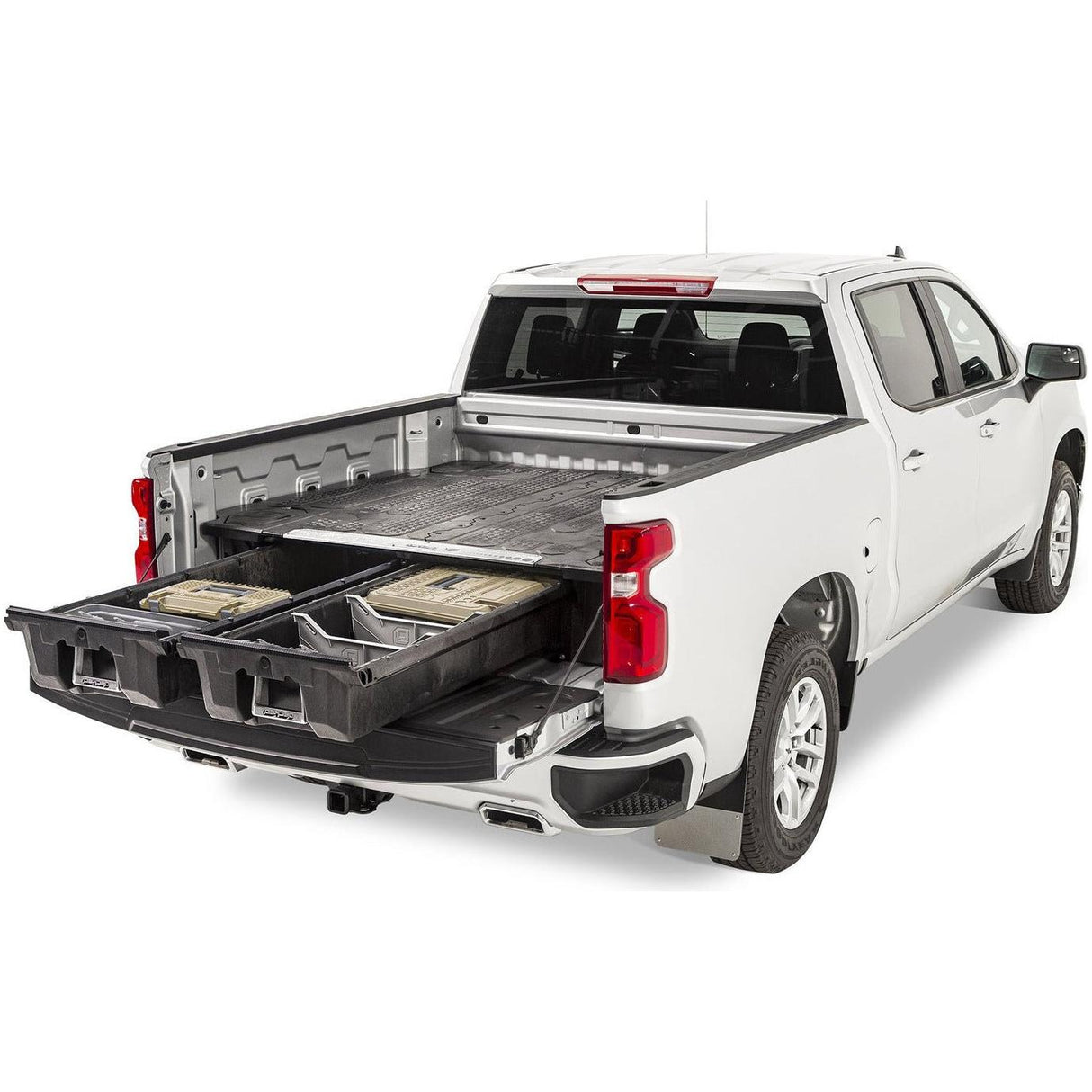

2019+ GM Sierra | Silverado 1500 | Decked Drawer System 5'9" Black
Couldn't load pickup availability
DECKED Drawer System DG6 - GMC Sierra or Silverado 1500 (2019-current) - New "wide" bed width Bed Length 5' 9" Color: Black
This DECKED truck bed organizer fits a GMC Sierra or Chevrolet Silverado 1500 manufactured from 2019-current with a bed length of 5'9”. It does not fit the "Old Body Style" (really 2018 body style) 2019 Silverado 1500. It takes a short full-size DECKED system.
All DECKED Drawer Systems come standard with the following accessories included at no extra charge: (1) D-Box Desert Tan, (1) Crossbox Desert Tan, (1) DRAWERGANIZER™, Set of (2) Drawer Dividers.
2019 GMC Sierra & SILVERADO 1500 NOTE: Since 2019 is a transition year for GMC / Chevrolet, they produced new and "Old Body Style" (really 2018 body style) for the 2019 Silverado 1500. If you have the "Old Body Style" 2019 Silverado 1500 5'9" bed, you will need the DG3.
NOTE: The DECKED system Does not fit the 2020 CarbonPro Bed.
NOTE: Because the standard full-size DECKED system is 75.25", there will be about 5" of empty space between the tailgate end of the DECKED system and the tailgate (blue area on image below). DECKED drawers require 4" to be opened, but the first 5 1/2" of the drawer are taken up by the handle cavity and drawer taper. So, it is nearly impossible to remove anything from the drawers with the tailgate closed.
NOTE: Drawers are full bed-length drawers, but do not fully extend. Max drawer extension: 42” for reasons related to physics.
NOT COMPATIBLE with any in-bed towing packages including 5th Wheel and Gooseneck packages.
LINERS: Works with spray-in bed liner, but NOT a drop-in plastic bed liner.
BEDRUG: Works with BedRug mat, but NOT with a BedRug full liner.
WARRANTY: We offer a limited lifetime warranty on all DECKED products.
WEIGHT CAPACITIES:
2000 lb payload evenly distributed
200 lb payload per drawer
SYSTEM DIMENSIONS:
TOTAL WEIGHT: ~220 lbs
LENGTH: 64.54"
WIDTH: 63"-71"
HEIGHT: 12"
SHIPPING DIMS: 241 lbs, 67"x 39" x 23"
DRAWER DIMENSIONS:
LENGTH (top of drawer): 61.4”
LENGTH (bottom of drawer): 55.4”
WIDTH (top of drawer): 18”
WIDTH (bottom of drawer): 16.75”
HEIGHT: 8.5”
VOLUME (each): 5.4 FT3
EXTENSION (each): 42"
Built from 100% recycled HDPE (High Density Polyethylene) in-molded to a galvanized recycled steel subframe.
