2017-2023 BMW M8/M5 - Eventuri Carbon Fiber Intake System V2

In stock - 7 items available
SKU: F9XM5M8-CF-INT
(0)
Regular price $2,339.99

The F92 M8 Eventuri intake system was developed through extensive real world testing and airflow simulation analysis. It features sealed filter housings to maintain a steady IAT, even while stationary. The shrouds which seal the housings, coupled with our scoop and shield combination ensures unrestricted airflow whilst maintaining low IATs through cold air saturation. Our large front air scoops transfer ambient air directly into the intake area thus ensuring the engine doesn?t suffer from heat soak. In addition, our gold heat-reflective lined shields have integrated flow guides which direct the ambient air from the scoops into the filters. We have also managed to increase the inlet tube cross-sectional area by over 30% compared to the stock intake as it feeds through the openings in the strut braces. This allows the turbos to work more with less restriction and reduce the waste-gate duty cycles.

The Eventuri Difference

The F92 M8 Eventuri system uses our Patented Carbon Fibre Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo.

Acceleration Time : 60-130mph Reduced By 0.22 seconds
Max Flow Rate Per Airbox at 28:" H2O: Stock 620 CFM, Eventuri 736 CFM


Features:

  • Carbon Fiber Patented Venturi Filter Housing
  • Bespoke High Flow Dry Cone Filter
  • Carbon Fiber Inlet Duct

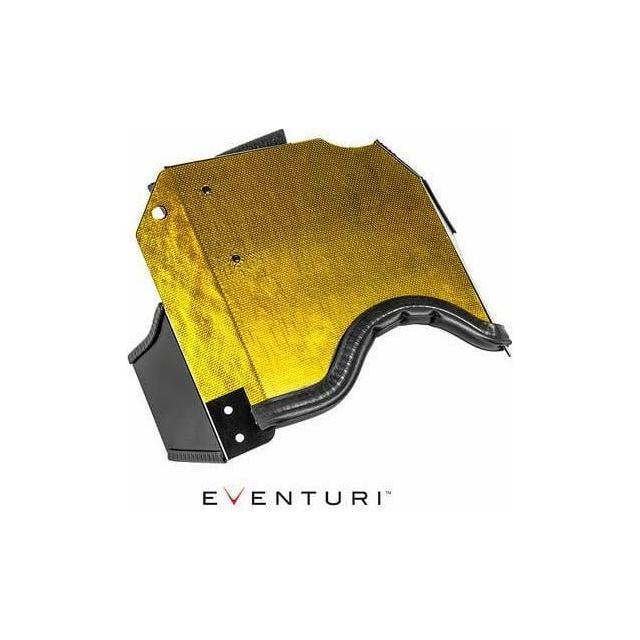

  • Heat Shield with Gold Reflective Backing
  • Laser Cut Stainless Steel Brackets
  • Silicon Breather Hose

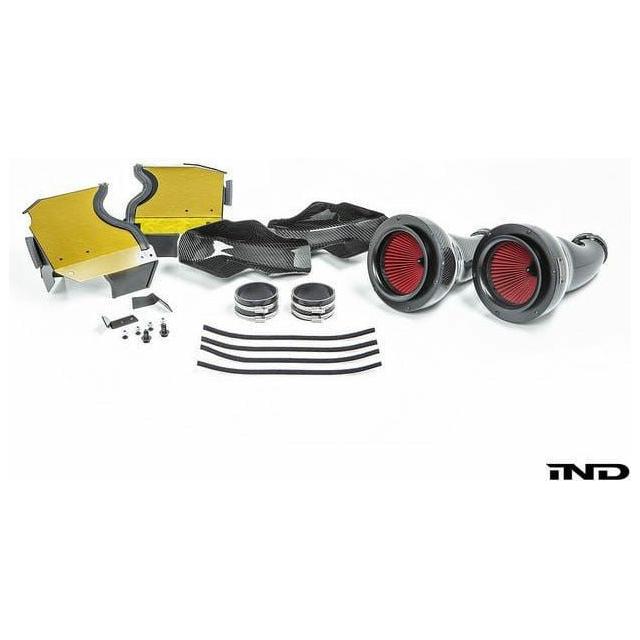

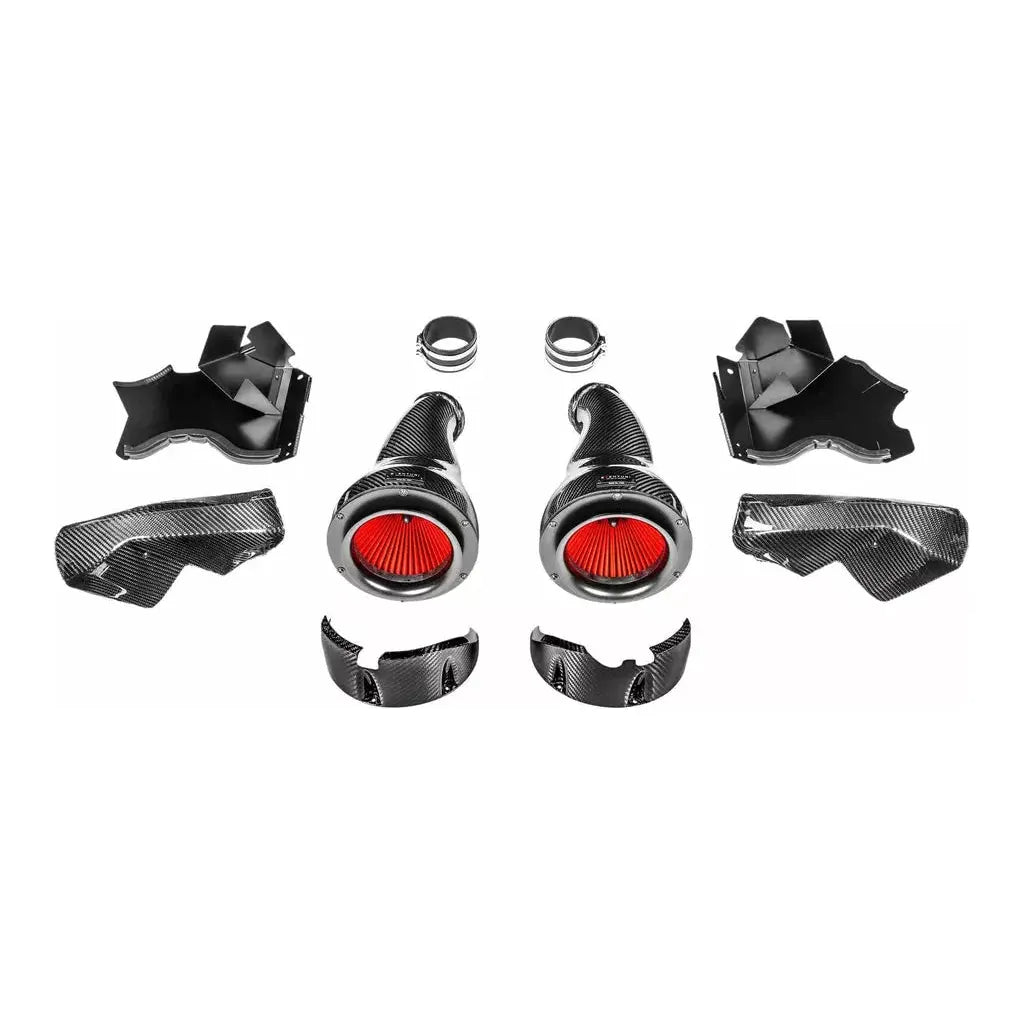

  • Package Includes:
    2 x Carbon Fiber Venturi Housings with Integrated Tubes
    2 x Bespoke High Flow Generation 2 Filters
    2 x Carbon Fiber Filter Shrouds
    2 x Aluminium Inlet Cowls
    2 x Carbon Fiber Air Scoops
    2 x Laser Cut Heat Shields lined with Gold Heat Reflective Material
    2 x Laser Cut Air Ramps integrated into the Heat Shields
    High Quality Silicon Couplers and OEM Spec Hose Clamps

Fitment:

  • BMW F92 M8 2017-2020

Note(s):

  • none
