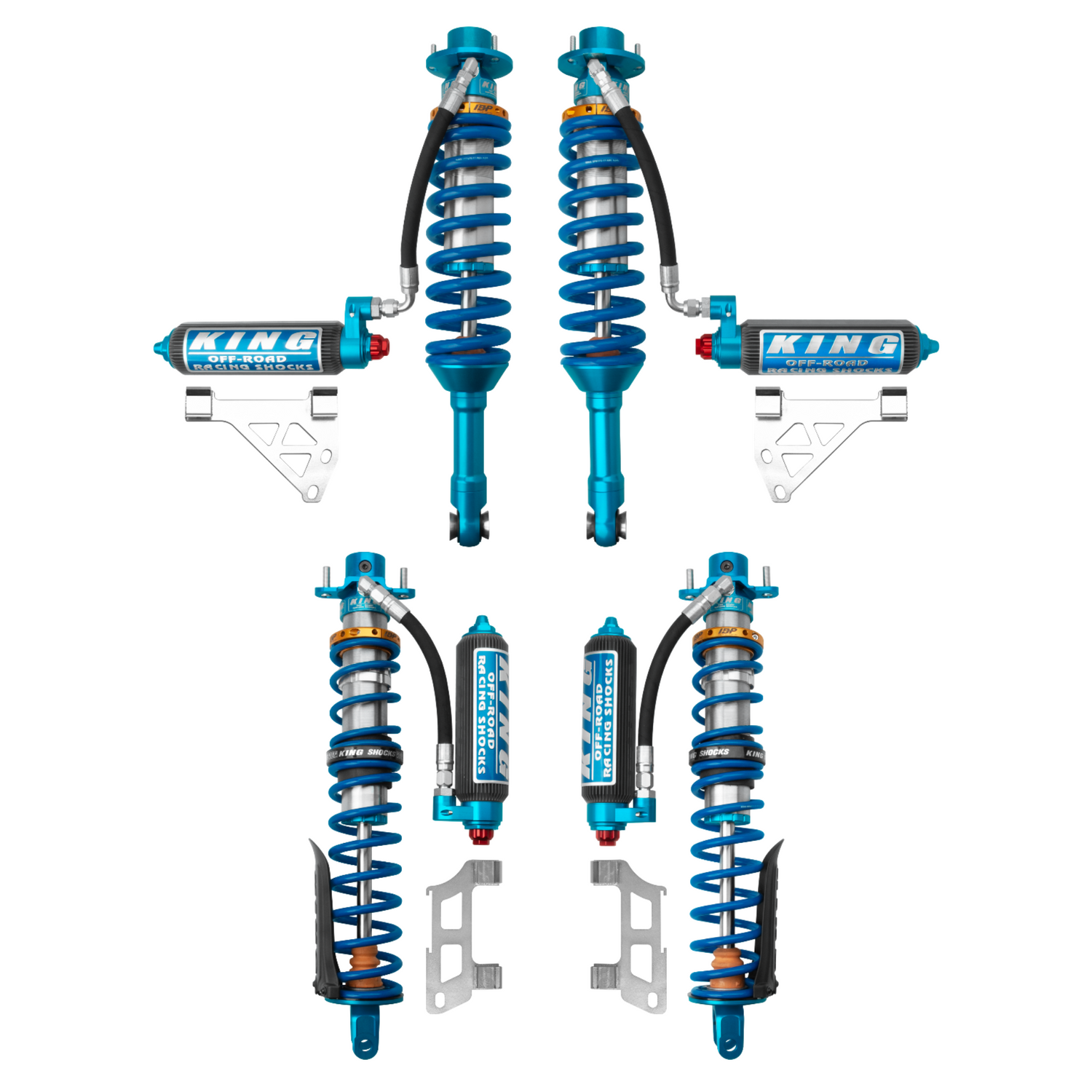

2022+ Bronco Raptor King 3.0 IBP Complete Shock Package

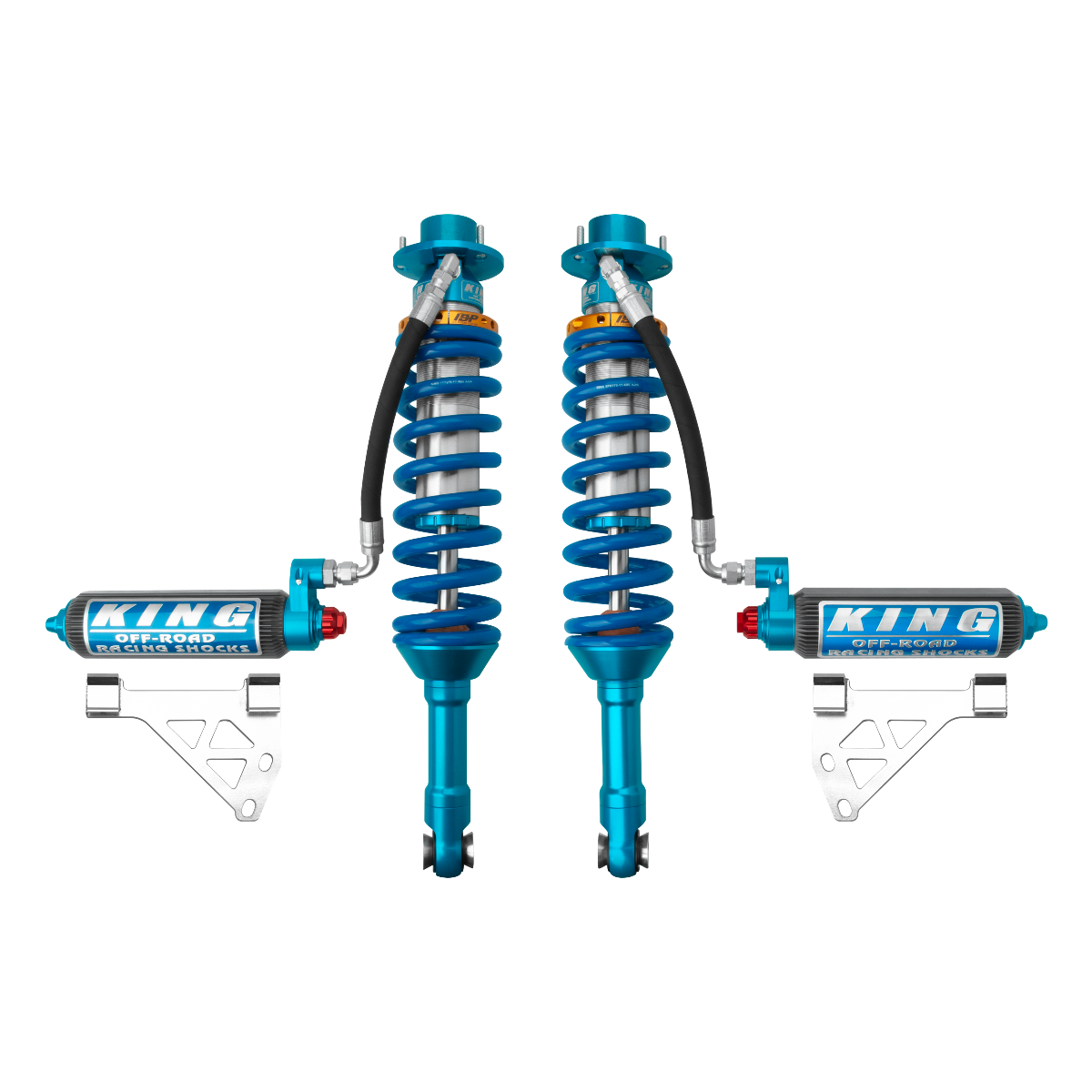

Front Coilover Key Features:

• 100% bolt on performance.
• Adjustable Ride Height.
• Large 3.0 diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• King’s 3.0 IBP Internal Bypass coilover shock delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop all in a bolt-on monotube shock.
• King’s monotube design uses a full diameter piston and standard, full size valving.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Bronco Raptor coilovers use large 3/4” top bearings and 1” lower bearings for superior strength.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop optimal damping curves and spring rates for your Bronco Raptor.
• Fully rebuildable, serviceable and tunable.

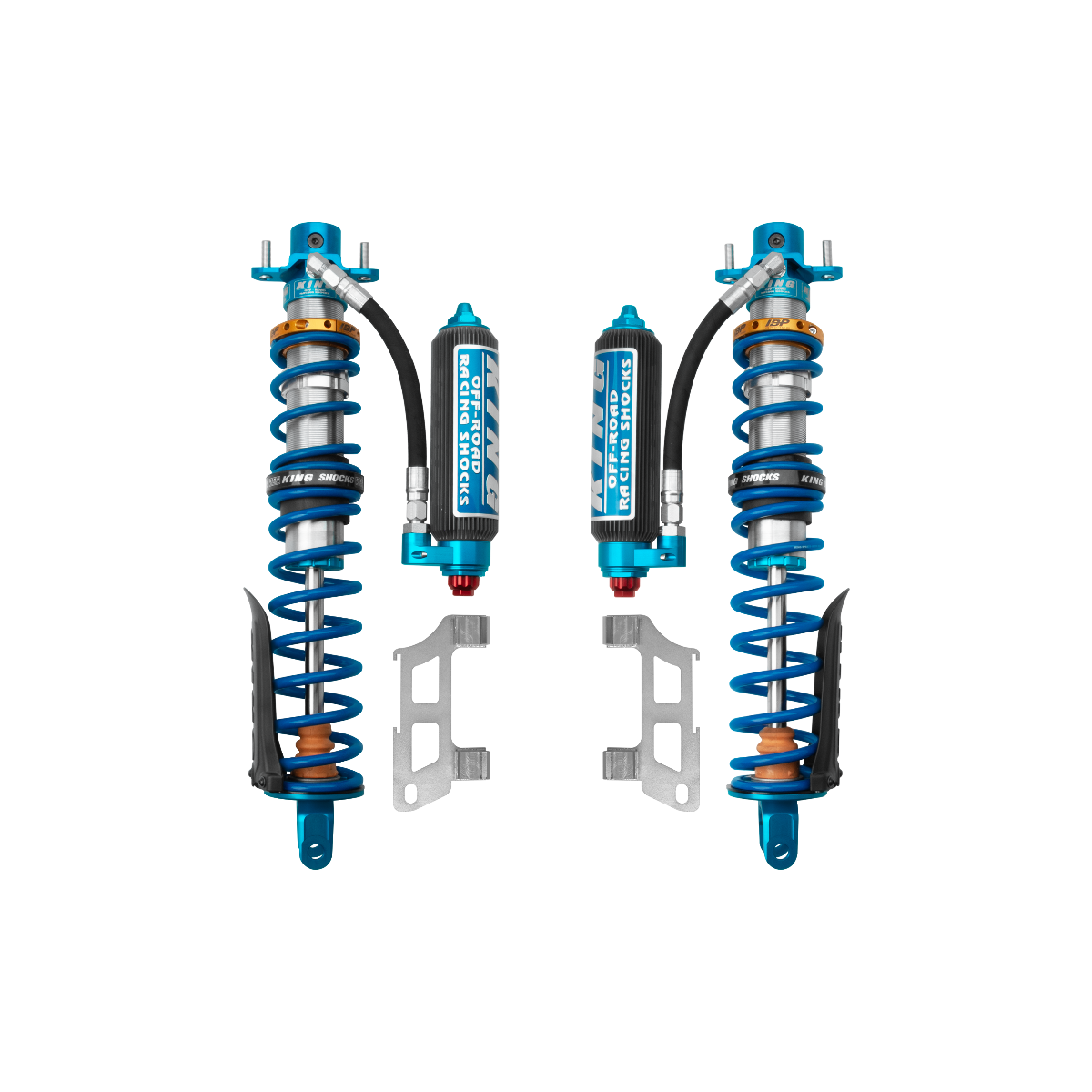

Rear Coilover Key Features:

• 100% bolt on performance.
• Adjustable Ride Height.
• Dual rate spring system allows users to fine tune and optimize their suspension setup.
• Large 3.0 diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• King’s 3.0 IBP Internal Bypass coilover shock delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop all in a bolt-on monotube shock.
• King’s monotube design uses a full diameter piston and standard, full size valving.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop optimal damping curves and spring rates for your Bronco Raptor.
• Fully rebuildable, serviceable and tunable.

Standard Finned Reservoirs and Compression Adjusters:

• 3.5” OD Pure Race Series External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
• All new threaded end cap design with new Schrader valve protective cap.
• Made from extruded 6061-T6 aluminum.
• New improved reservoir mounts. No more hose clamps!
• New hose attachment at the reservoir allows swivel adjustment of the hose clocking.
• Comes standard with King’s 3.0 Wide Range Compression Adjuster that gives 30 precise clicks of compression damping adjustment to further refine your ride quality.
• Reduces shock cavitation.
