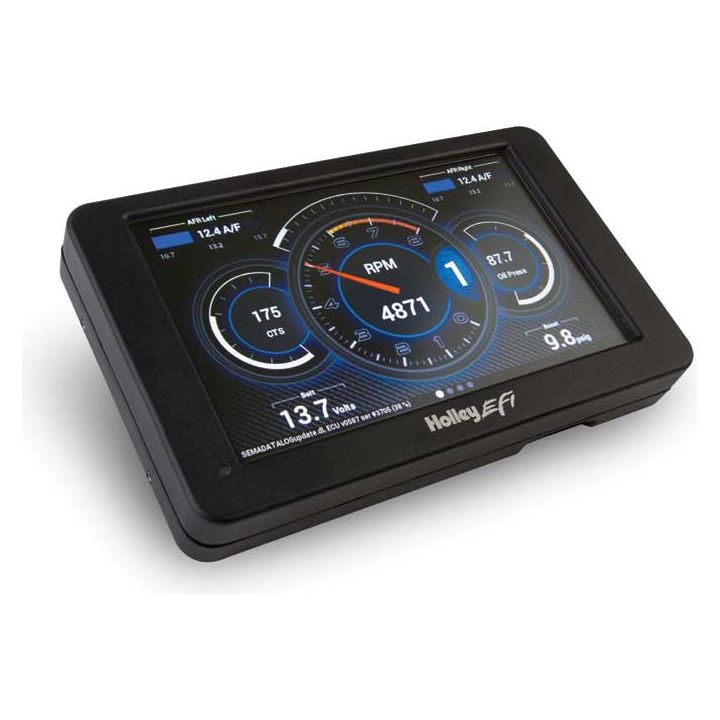

Holley EFI Digital Dash Gauges 553-106

OVER 20 KITS IN STOCK FOR SAME DAY DISPATCH!

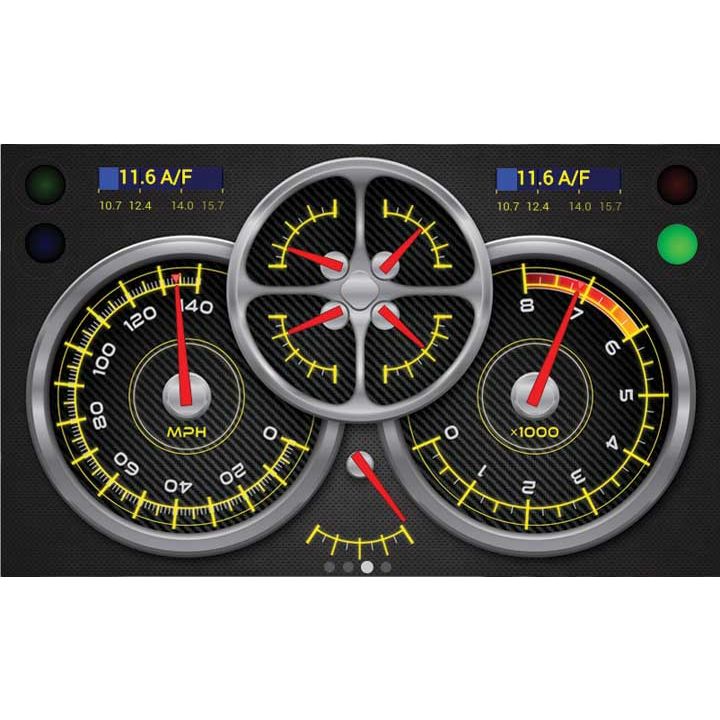

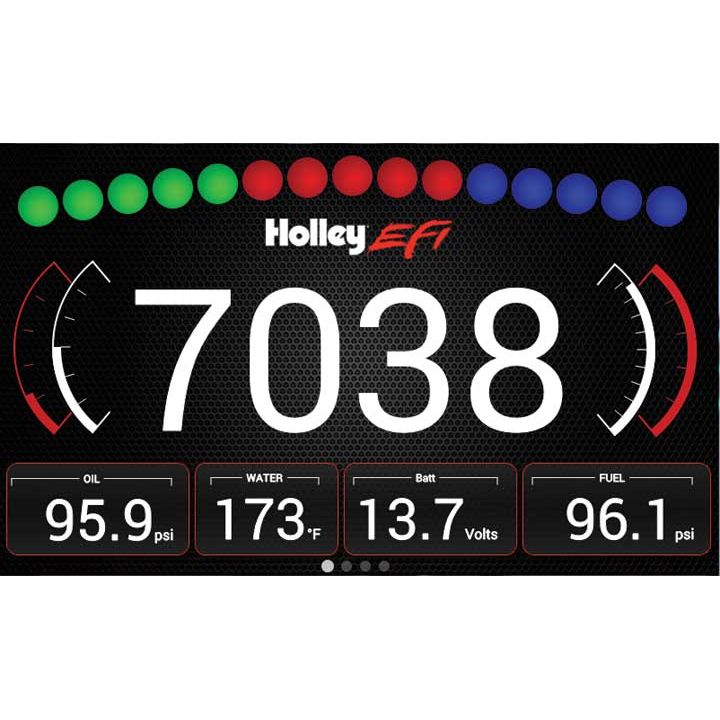

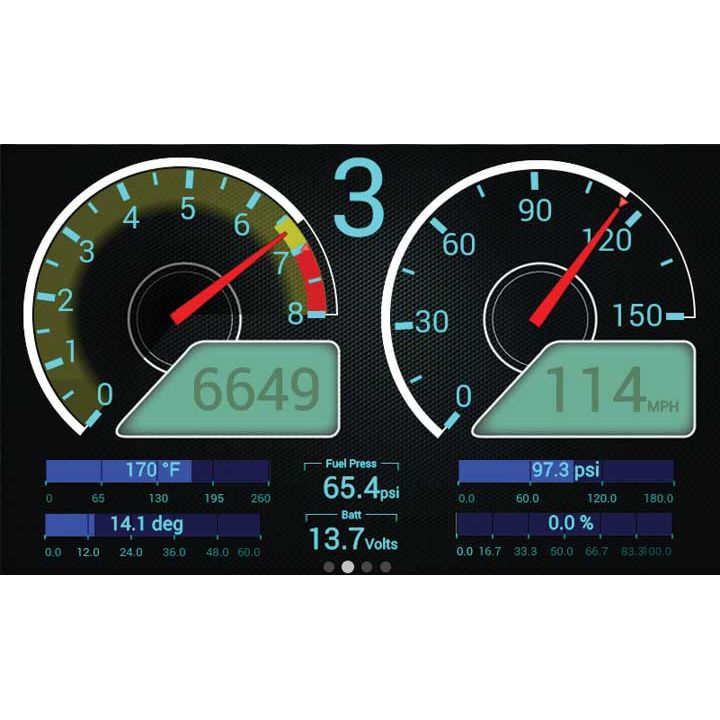

• Fully Customizable with a Variety of Gauge and Indicator Screens
  The Holley EFI Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user-defined alarms, configurable shift lights and can control on-screen playback of your EFI data logs. This is a compact, customizable dash for use in a variety of motorsports applications, especially where dash space is at a minimum. The Dash features a 7-inch low glare, high brightness, high contrast, full-color touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weather resistant aluminum housing featuring flexible mounting options.



  Features and Benefits:
  - Plug and Play Connection to all Holley EFI Systems via CAN Bus
  - Compact, Customizable Dash for use in a variety of Motorsports Applications
  - 7" Low Glare, High Brightness, High Contrast, Full Color Touch Screen for easy viewing even in full sun
  - 800x480 Resolution with Auto Brightness
  - Operating Voltage Min 8V - 20V
  - Weather Proof Aluminum Housing featuring Flexible Mounting Options
  - Completely Customizable Display of all EFI Parameters including every user configurable input and output available
  - Multiple Gauge and Indicator Types with Limitless Customization Options
  - Quickly Toggle between Multiple Active Screens (tune, warm-up, race, drive, etc.)
  - Virtual Switch Panel (replaces the need for physical switches)
  - User Defined Alarms for any Input
  - Configurable Progressive Shift Lights and Light Bar
  - Control and on Screen Playback of EFI Data Logs
  - Download and Save Holley EFI Data Logs to External USB Memory Stick
  - Expandable Internal Storage on Micro SD Card
  - Support for future USB Devices
  - Upgradable with future Software Enhancements
  - Integrated 3 Axis Accelerometer

  The Holley 7-inch EFI Digital Dash (553-106) is one of the most versatile digital dashes you can purchase today. All of its features are completely customizable, including several gauge and indicator screens that are programmable by any user based on want or need. It features configurable shift lights, user-defined alarms, a virtual switch panel, and—most importantly—the ability to control on-screen playback of EFI data logs. This Digital Dash (553-106) is all about convenience!

  At 7.5 inches wide, 4.625 inches tall, and only 1 inch deep, this product is virtually usable in most motorsport applications. Its screen sits at 7 inches wide diagonally, and displays information with low glare, high contrast, high brightness, and a full color touch screen that is visible in any weather. Speaking of weather, this Digital Dash (553-106) is weatherproof thanks to its aluminum housing which features flexible mounting options. You can also take advantage of its plug-and-play connection to all Holley EFI systems.

  Holley EFI Digital Dash Specs:
  - Depth: 1”
  - Height 4.625”
  - Width: 7.5”
  - Screen Size: 7” Diagonal
  - Screen Type: Resistive Touch Screen
