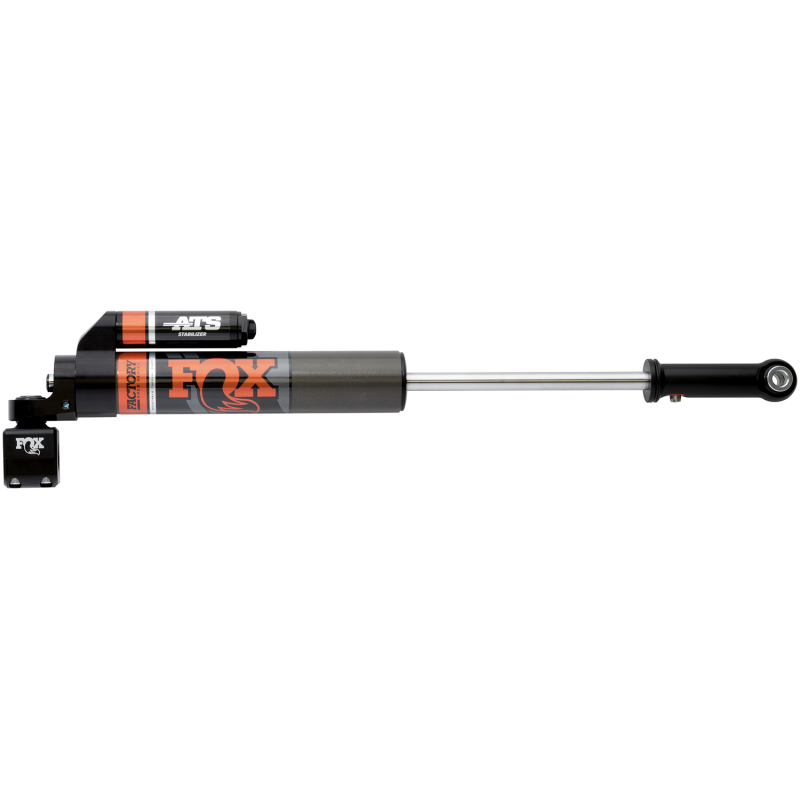

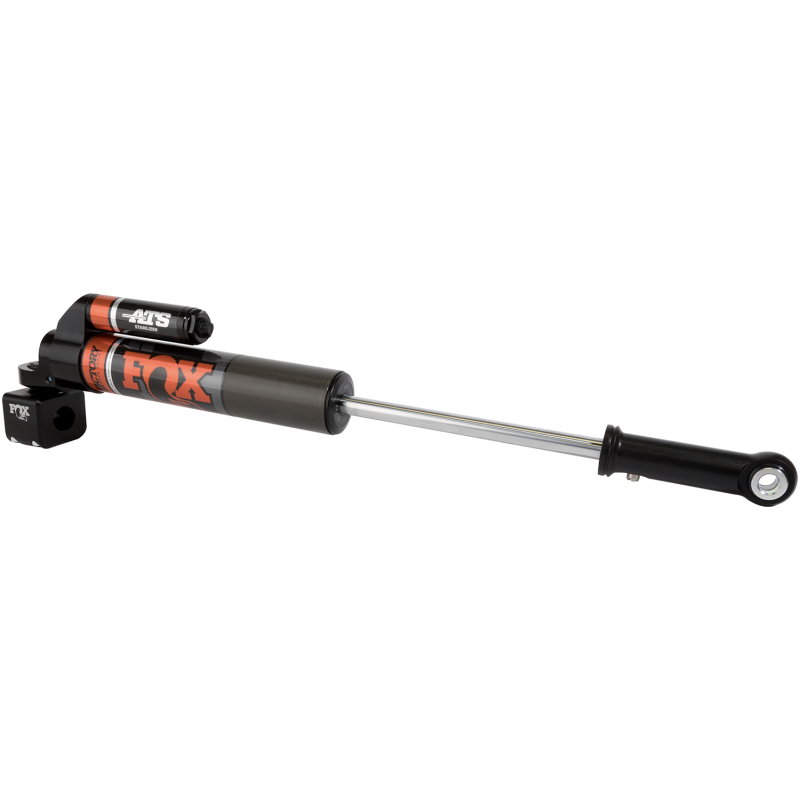

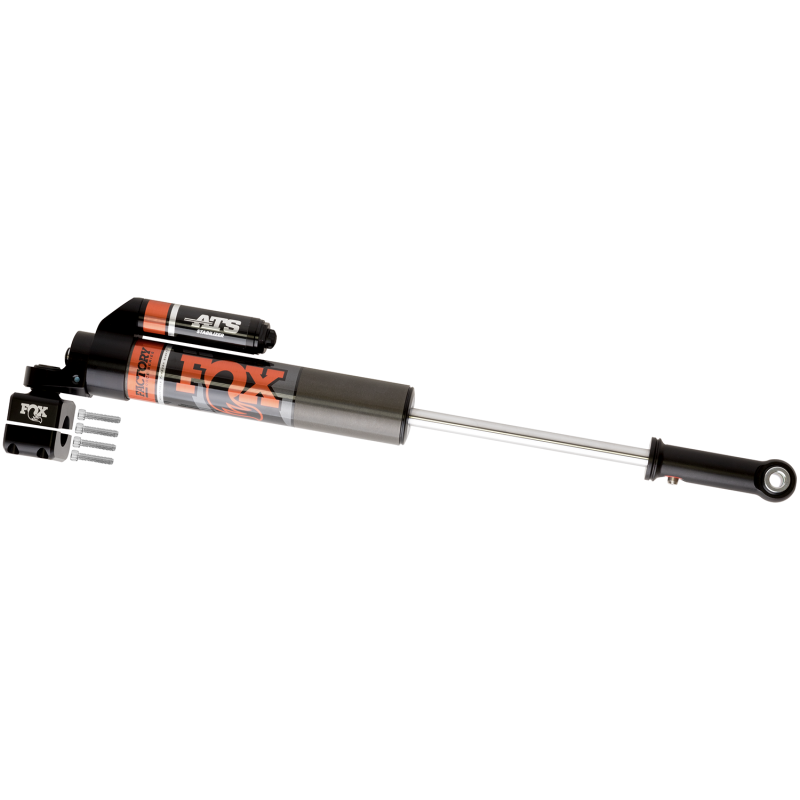

Fox 2008-2016 Ford Superduty 2.0 Performance Series ATS Stabilizer Steering Damper 1-1/8 Tie Rod (Alum)

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer's entire travel in both directions. The external piggyback reservoir provides additional fluid?capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation.?For increased control that can be tailored to any driving style and setup, an?external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and?consistent damping?of unwanted steering feedback?in a single, bolt-on stabilizer.

Specifications:

• Part Number: 983-02-144
• Series: Factory Race
• Travel: 8.11
• Body: 2.0" Impact Extruded And Cnc Machined 6061-T6 Clear Anodized Aluminum Body Resists Rust Over Time
• Body Plating: Hard-Anodized For A Durable Finish
• Components: Black-Anodized, Cnc-Machined 6061-T6 Billet Aluminum
• Shaft: 5/8" Hard Chrome Plated Heat-Treated Alloy Steel
• Piston: Race-Developed High-Flow Piston Design
• Valving: Application Specific Valving To Maximize Performance
• Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
• Extended Length: 24.78
• Compressed Length: 16.67
• Top Mount: Tie Rod Clamp

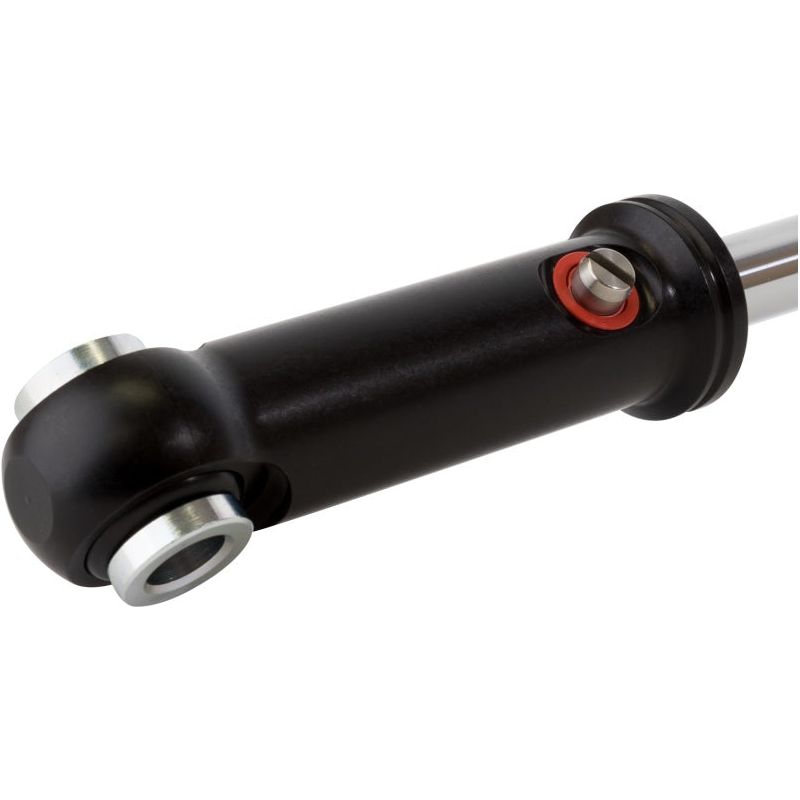

• Bottom Mount: Eyelet

Installation Instructions
Installation Instructions


This Part Fits:
