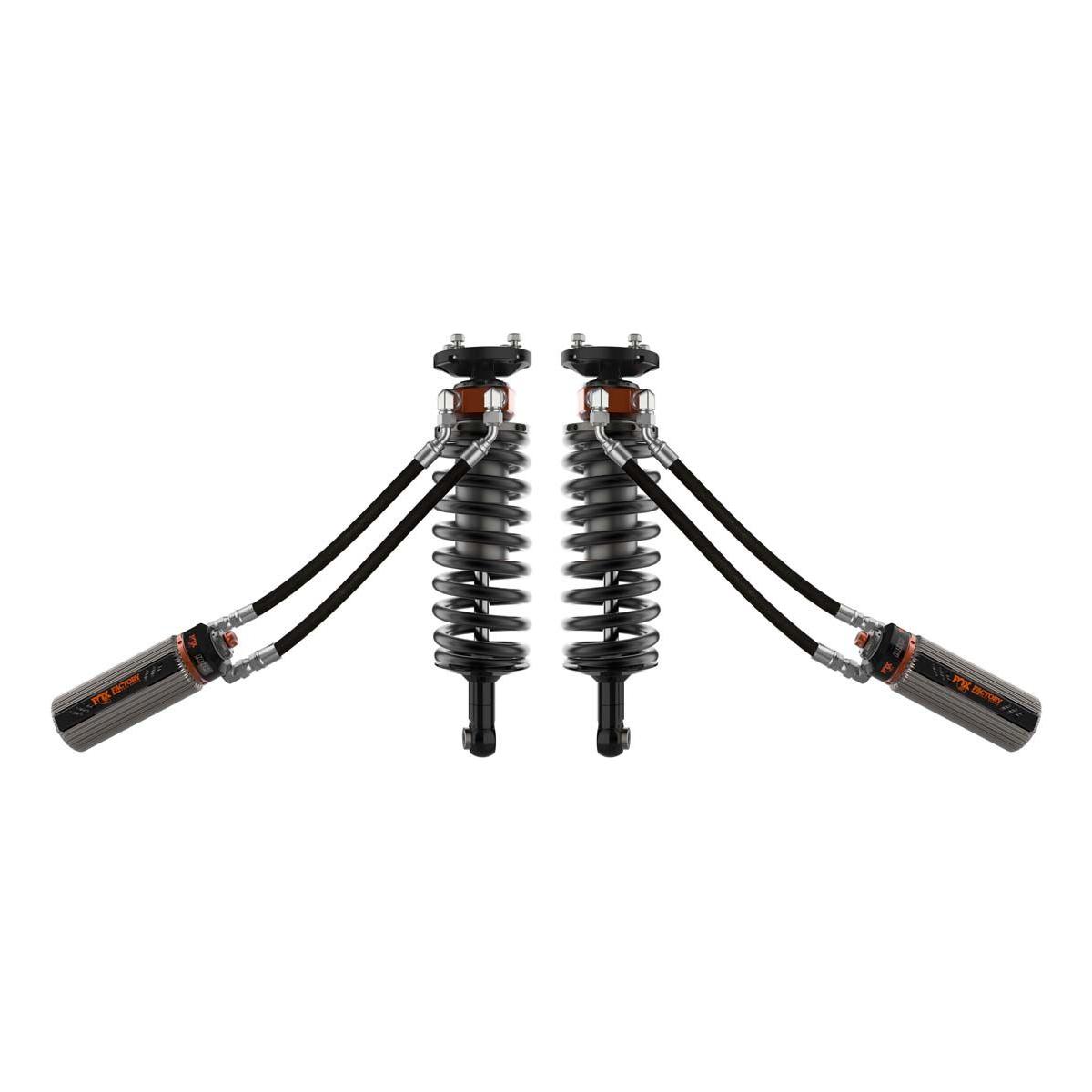

Fox 2022+ Toyota Tundra 3.0 Factory Race Series Internal Bypass Front Shock 2.0-2.25in Lift w/UCA

Only 2 left
SKU: FOX883-06-219
(0)
Regular price $3,699.95

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position- sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

A Recirculating Reservoir Bridge enables the continuous exchange of shock fluid between the finned external reservoir and body using a checked port, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. Dial in your Tundra for load, environment, and driving style with the DSC adjuster.

FOX Internal Bypass shocks deliver the support and confidence you need while driving high- speed through rugged terrain. Experience race-bred performance next time you leave the pavement.

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position and velocity-sensitive damping, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Experience the support and confidence you need while driving high-speed through rugged terrain.

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology,Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

FOX internal bypass shocks deliver the support and confidence you need while driving hard through rugged terrain. Experience race-bred performance next time you leave the pavement.

Fitment:

  • 2022+ Toyota Tundra

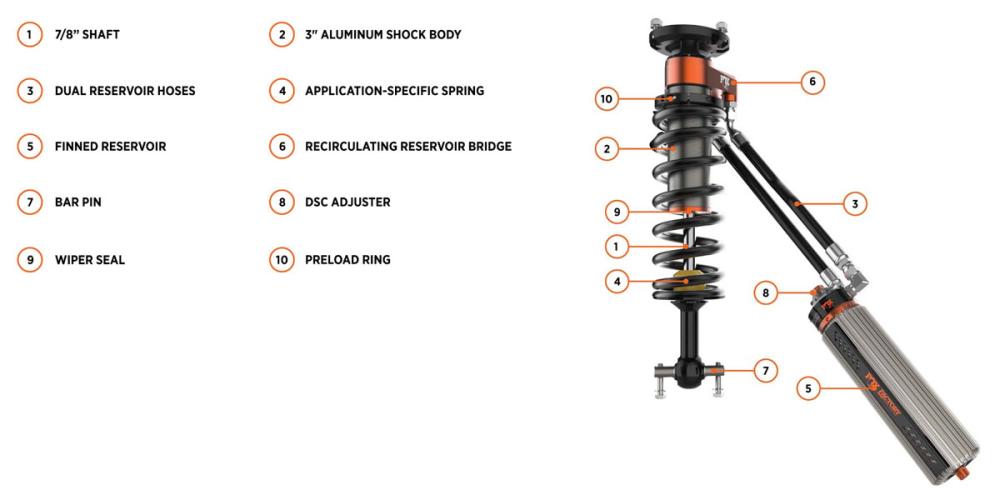

Features:

  • 3.0" impact-extruded and CNC-machined 6061-T6 Type Ill anodized aluminum body
  • Patented, internal bypass design
  • Application-specific springs
  • 7/8" stainless steel shafts
  • Vehicle-specific tuning maximizes performance
  • Redundant sealing pack system: main seal, wiper seal, scraper seal
  • Finned reservoir, with DSC adjuster
  • Sold as Pair

Benefits:

  • Position- and velocity-sensitive damping maximize comfort and control through any terrain
  • Tune vehicle for load, environment, and driving style with DSC adjusters
  • Vehicle-specific springs enhance articulation and increase stability
  • Mounted remote reservoirs eliminate interference with aggressive tires
  • Front coil-overs achieve 2-2.25" of lift. The kit requires upper control arms.
Part # Description Lift Extended Compressed Travel
FOX-883-06-219 FOX 3.0 FRS Front Internal Bypass Coilover Shocks with DSC for 2022+ Toyota Tundra 2-2.25" 21.690" 15.650" 5.370"



This Part Fits:



Year Make Model Submodel
2022-2024 Toyota Tundra 1794 Edition
2022-2024 Toyota Tundra Capstone
2022-2024 Toyota Tundra Limited
2022-2024 Toyota Tundra Platinum
2022-2024 Toyota Tundra SR
2022-2024 Toyota Tundra SR5
2022-2024 Toyota Tundra TRD Pro
